Foreword
After tackling some virtual machine reverse engineering challenges (ACTF - miniLCTF), it’s time to write a rundown of my approaches, so here’s this post.
[NCTF 2024] gogo
A Turing-complete Virtual Machine (VM) implementing a TEA algorithm, which is closer to a Finite State Machine after regarding STRI and LDRI as input.
| Instruction | Operands | Operand 1 (Byte a10) | Operand 2 (Byte a11) | Operand 3 (Byte a12) |
|---|---|---|---|---|
| ADD/SUB/MUL/XOR/AND | 3 | Rd (reg index) | Rn (reg index) | Rm (reg index) |
| LSL/LSR | 3 | Rd (reg index) | Rn (value reg) | Rm (shift amt reg) |
| MOV | 2 | Rd (reg index) | Immediate val (WORD little endian) | |
| STRI/LDRI | 2 | Rd (reg index) | Must be 0x00 | Immediate val (addr) |
| LDR/STR | 2 | Rd (reg index) | Rn (addr) | Must be 0x00 |
; --- VM1 Disassembly from DumpedByteCodes.bin ---
; Offset Bytes Instruction
0x00000000: 2A 00 37 9E MOV R0, #0x9e37
0x00000004: 2A 01 B9 79 MOV R1, #0x79b9
0x0000000C: 2A 02 10 00 MOV R2, #0x0010
0x00000010: 71 03 00 02 LSL R3, R0, R2
0x0000001C: 41 01 01 03 ADD R1, R1, R3
0x00000020: 16 01 00 1C STRI R1, [#0x1c] ; 0x9e3779b9
0x00000024: 2A 00 00 00 MOV R0, #0x0000
0x00000034: 16 00 00 18 STRI R0, [#0x18]
0x00000040: 2A 0E 00 00 MOV R14, #0x0000
0x00000044: 12 02 00 04 LDRI R2, [#0x04] ; y
0x0000004C: 12 03 00 10 LDRI R3, [#0x10] ; z
0x00000050: 2A 00 02 00 MOV R0, #0x0002
0x00000060: 2A 0F 05 00 MOV R15, #0x0005
0x00000064: 71 04 02 00 LSL R4, R2, R0 ; y << 2
0x0000006C: 73 05 03 0F LSR R5, R3, R15 ; z >> 5
0x00000070: 7A 06 04 05 XOR R6, R4, R5 ; (z >> 5) ^ (y << 2)
0x00000080: 2A 00 03 00 MOV R0, #0x0003
0x00000084: 2A 0F 04 00 MOV R15, #0x0004
0x00000088: 73 04 02 00 LSR R4, R2, R0 ; y >> 3
0x00000098: 71 05 03 0F LSL R5, R3, R15 ; z << 4
0x0000009C: 7A 07 04 05 XOR R7, R4, R5 ; (y >> 3) ^ (z << 4)
0x000000A0: 41 08 06 07 ADD R8, R6, R7 ; ((z >> 5) ^ (y << 2)) + ((y >> 3) ^ (z << 4))
0x000000A8: 2A 04 8C A7 MOV R4, #0xa78c
0x000000AC: 2A 05 4F 0B MOV R5, #0x0b4f
0x000000BC: 2A 0F 10 00 MOV R15, #0x0010
0x000000C4: 71 06 04 0F LSL R6, R4, R15
0x000000C8: 41 05 05 06 ADD R5, R5, R6
0x000000CC: 16 05 00 28 STRI R5, [#0x28] ; 0xa78c0b4f
0x000000D8: 2A 0F 02 00 MOV R15, #0x0002
0x000000DC: 73 09 01 0F LSR R9, R1, R15 ; sum >> 2
0x000000E8: 7B 0D 09 00 AND R13, R9, R0 ; (sum >> 2) & 3
0x000000EC: 7A 04 0D 0E XOR R4, R13, R14; p ^ ( (sum >> 2) & 3 )
0x000000F4: 7B 04 04 00 AND R4, R4, R0 ; p ^ ( (sum >> 2) & 3 ) & 3
0x00000100: 2A 0C 04 00 MOV R12, #0x0004
0x00000104: 47 04 04 0C MUL R4, R4, R12 ; idx * 4
0x00000108: 2A 0F 20 00 MOV R15, #0x0020
0x00000110: 41 0A 04 0F ADD R10, R4, R15; (idx * 4) + 0x20
0x0000011C: 11 04 0A 00 LDR R4, [R10] ; key[p ^ ( (sum >> 2) & 3 ) & 3]
0x00000120: 7A 06 01 02 XOR R6, R1, R2 ; sum ^ y
0x00000128: 7A 07 03 04 XOR R7, R3, R4 ; z ^ key[p]
0x0000012C: 41 09 06 07 ADD R9, R6, R7 ; (sum ^ y) + (z ^ key[p ^ e & 3])
0x0000013C: 7A 0A 08 09 XOR R10, R8, R9 ; ((z >> 5) ^ (y << 2)) + ((y >> 3) ^ (z << 4)) ^ ((sum ^ y) + (key[(p & 3) ^ e] ^ z))
0x00000144: 2A 04 63 6E MOV R4, #0x6e63
0x00000148: 2A 05 66 74 MOV R5, #0x7466
0x0000014C: 2A 0F 10 00 MOV R15, #0x0010
0x0000015C: 71 06 04 0F LSL R6, R4, R15
0x00000164: 41 05 05 06 ADD R5, R5, R6
0x00000168: 16 05 00 20 STRI R5, [#0x20] ; 0x6e637466
0x00000170: 12 0B 00 00 LDRI R11, [#0x00]
0x00000180: 41 0C 0A 0B ADD R12, R10, R11
0x00000188: 16 0C 00 00 STRI R12, [#0x00]
0x00000198: 2A 00 01 00 MOV R0, #0x0001
0x0000019C: 41 0E 0E 00 ADD R14, R14, R0
0x000001AC: 2A 04 2E 06 MOV R4, #0x062e
0x000001B0: 2A 05 ED F0 MOV R5, #0xf0ed
0x000001B8: 2A 0F 10 00 MOV R15, #0x0010
0x000001C4: 71 06 04 0F LSL R6, R4, R15
0x000001C8: 41 05 05 06 ADD R5, R5, R6
0x000001D8: 16 05 00 24 STRI R5, [#0x24] ; 0x062ef0ed
0x000001DC: 12 02 00 08 LDRI R2, [#0x08] ; y
0x000001E0: 12 03 00 00 LDRI R3, [#0x00] ; z
0x000001F0: 2A 00 02 00 MOV R0, #0x0002 ;
0x000001F4: 2A 0F 05 00 MOV R15, #0x0005;
0x000001F8: 71 04 02 00 LSL R4, R2, R0 ; << 2
0x00000208: 73 05 03 0F LSR R5, R3, R15 ; >> 5
0x00000218: 7A 06 04 05 XOR R6, R4, R5
0x0000021C: 2A 00 03 00 MOV R0, #0x0003 ;
0x00000220: 2A 0F 04 00 MOV R15, #0x0004;
0x0000022C: 73 04 02 00 LSR R4, R2, R0
0x00000230: 71 05 03 0F LSL R5, R3, R15
0x00000234: 7A 07 04 05 XOR R7, R4, R5
0x00000244: 41 08 06 07 ADD R8, R6, R7
0x00000248: 2A 04 30 32 MOV R4, #0x3230
0x00000250: 2A 05 34 32 MOV R5, #0x3234
0x00000254: 2A 0F 10 00 MOV R15, #0x0010
0x00000258: 71 06 04 0F LSL R6, R4, R15
0x00000264: 41 05 05 06 ADD R5, R5, R6
0x00000268: 16 05 00 2C STRI R5, [#0x2c] ; 0x32303234
. . .
[NCTF 2023] ezVM

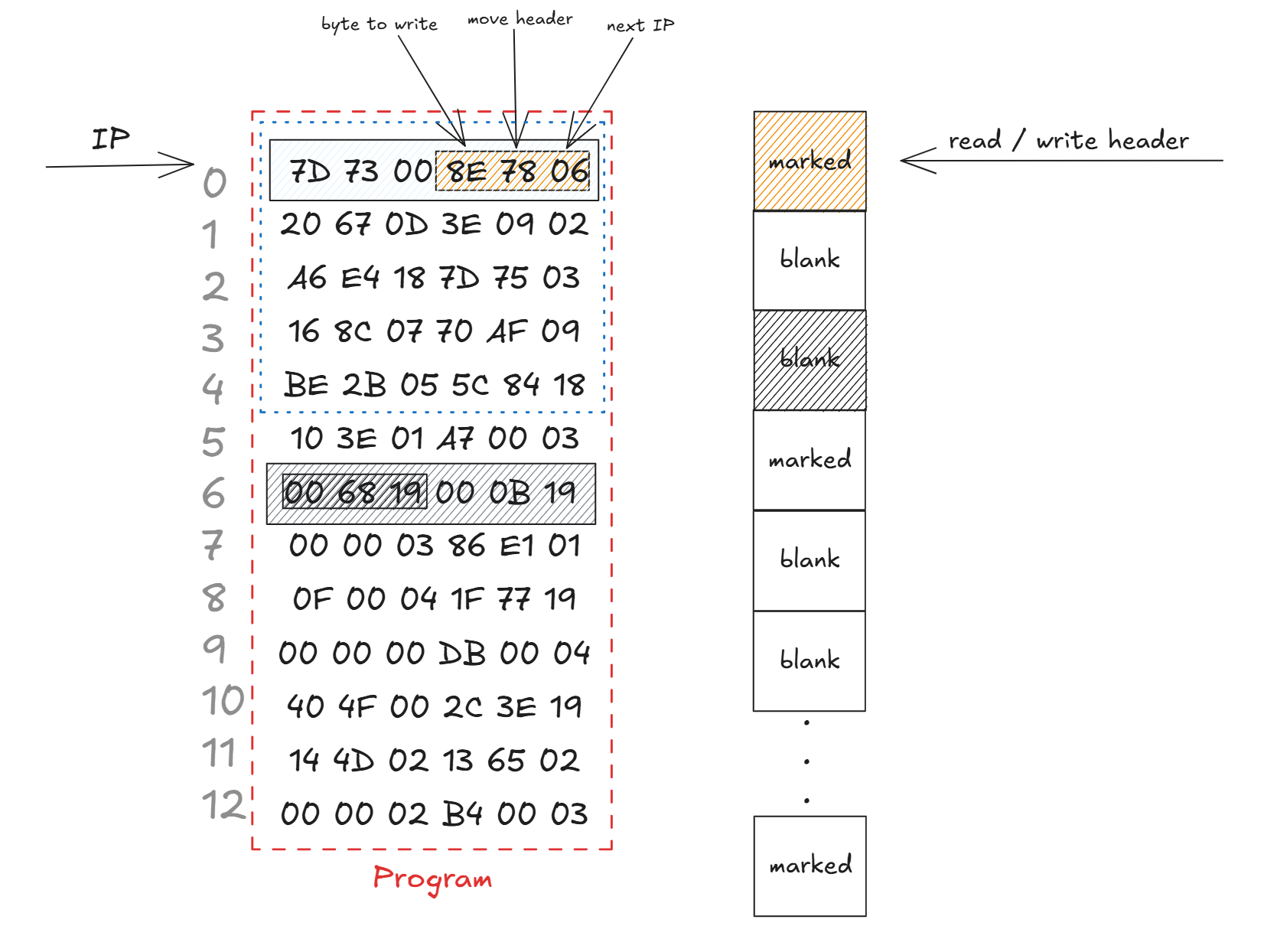

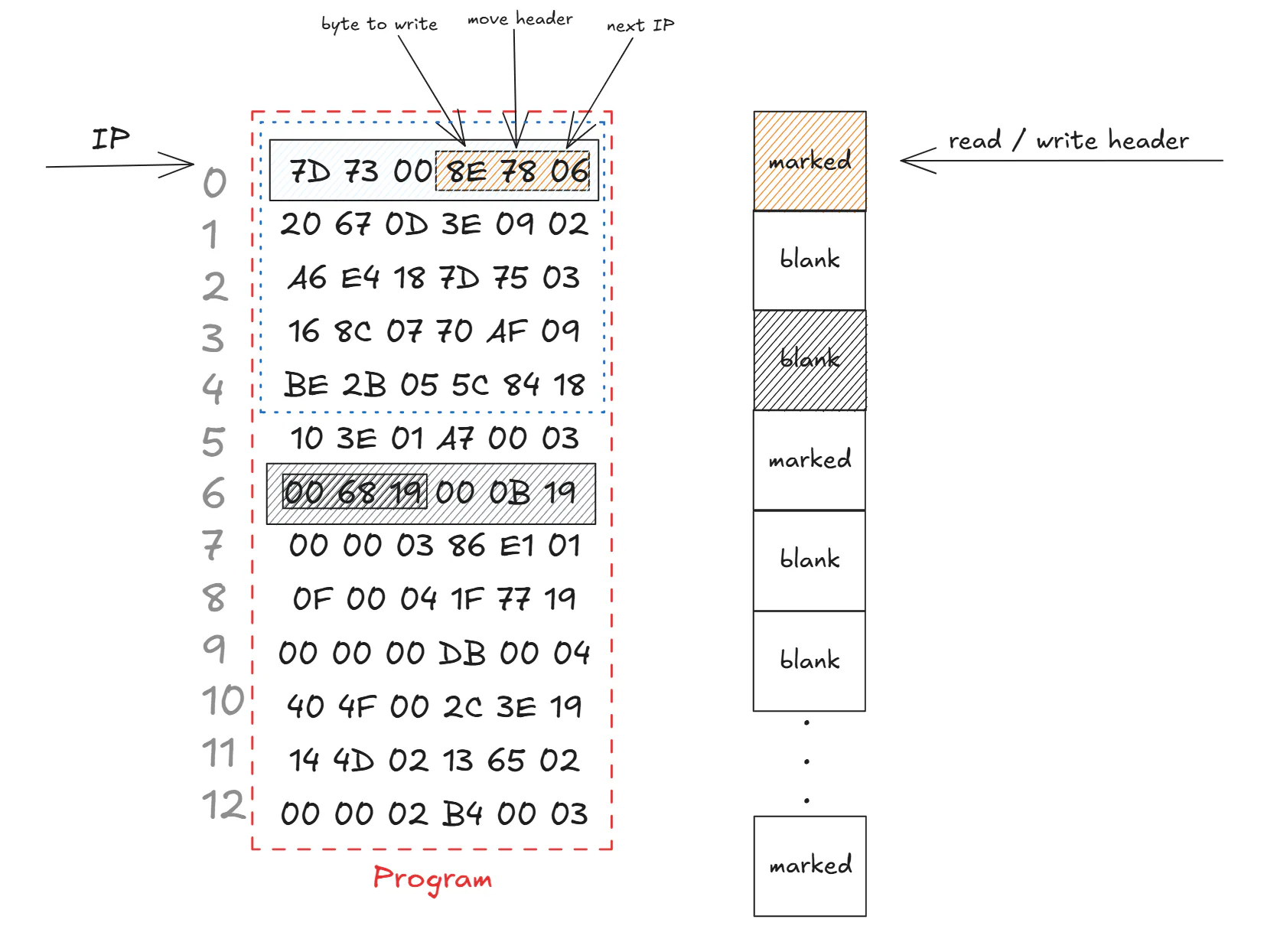

This VM also implements a Turing-complete VM. Yet, its behavior is closer to a pushdown automaton (PDA = FSM + STACK) which can leak side channel info due to single-byte verification.
Acquire Side-channel Info

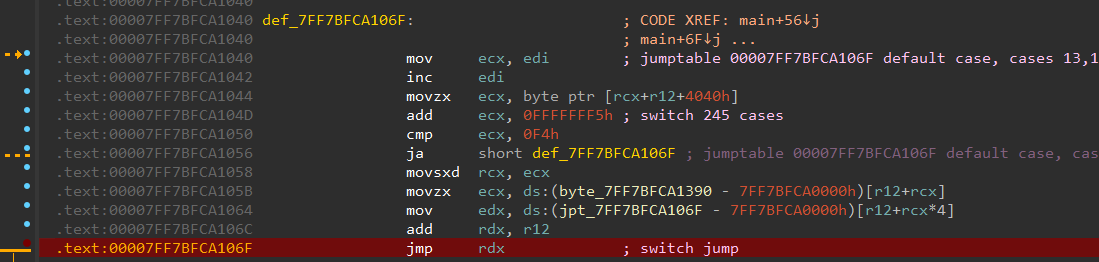

Using following script to count how many times the target instruction is executed.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
# -*- coding: utf-8 -*-
import idaapi
import idc
import ida_kernwin
import ida_dbg
# --- Global Variables ---
# Stores the count for the single address being tracked during the CURRENT run
execution_counts = {}
# Stores the history of counts from PREVIOUS runs for the tracked address
run_history = {}
# Stores the address we are currently tracking
g_target_ea = idaapi.BADADDR
# Stores the instance of our debugger hook
g_debugger_hook = None
# --- Debugger Hook Class ---
class ExecutionCounterHook(ida_dbg.DBG_Hooks):
"""
Debugger hook to detect process termination, record counts, and reset for the next run.
"""
def dbg_process_exit(self, pid, tid, ea, code):
"""
Called when the debugged process terminates.
Records the count for the finished run and resets the counter.
"""
print(f"[Debug Event] Process exited (PID: {pid}, Code: {code})")
self._record_and_reset_count()
return 0 # Important: Hooks should generally return 0
def _record_and_reset_count(self):
"""
Helper to record the count for the completed run, print history,
and reset the counter for the next run.
"""
global execution_counts, run_history, g_target_ea
if g_target_ea != idaapi.BADADDR:
current_count = execution_counts.get(g_target_ea, 0)
# Record the count for this run in history
history_list = run_history.setdefault(g_target_ea, [])
history_list.append(current_count)
print(f"--- Execution Count Report ({g_target_ea:#x}) ---")
print(f" Current Run: {current_count} times")
print(f" History: {history_list}")
print(f"-----------------------------")
# Reset count ONLY for the next run
execution_counts[g_target_ea] = 0
print(f"[INFO] Count for address {g_target_ea:#x} has been reset to 0, ready for the next run.")
else:
print("[INFO] No valid address is currently being tracked.")
# --- Core Functions ---
def set_counting_bpt(ea):
"""
Sets a trace breakpoint at the specified address 'ea' to count
the number of times this instruction is executed.
The breakpoint will not suspend the program; it only executes the counting code.
Args:
ea (int): The effective address (EA) of the target instruction.
Returns:
bool: True if setting the breakpoint was successful, False otherwise.
"""
global execution_counts
# 1. Check if the address is valid
if not idaapi.is_mapped(ea):
print(f"[ERROR] Address {ea:#x} is invalid or not mapped.")
return False
# 2. Prepare Python condition code (return 0 to solve SWIG issues)
# Use f-string to embed the address, ensuring dictionary key is an integer
python_condition = f"""
global execution_counts
addr = {ea}
execution_counts[addr] = execution_counts.get(addr, 0) + 1
# print(f"Hit count at : ") # Uncomment for debugging
return 0
"""
# Clean up newlines and indentation
python_condition = "\n".join([line.strip() for line in python_condition.strip().splitlines()])
# 3. Add or get breakpoint
bpt = idaapi.bpt_t()
# First, try to delete an old breakpoint at the same address (if any) to avoid configuration conflicts
idaapi.del_bpt(ea)
if not idaapi.add_bpt(ea, 0, idaapi.BPT_SOFT):
print(f"[ERROR] Failed to add breakpoint at address {ea:#x}.")
return False
else:
# Must re-fetch breakpoint info to modify it
if not idaapi.get_bpt(ea, bpt):
print(f"[ERROR] Failed to get breakpoint info at address {ea:#x} after adding it.")
# Clean up failed breakpoint addition
idaapi.del_bpt(ea)
return False
# 4. Configure breakpoint properties
bpt.elang = 'Python'
bpt.condition = python_condition
bpt.flags |= idaapi.BPT_ENABLED
bpt.flags &= ~idaapi.BPT_BRK # Crucial: Do not suspend
bpt.flags |= idaapi.BPT_TRACE # Explicitly marking as trace breakpoint might help in some IDA versions
# 5. Update breakpoint
if not idaapi.update_bpt(bpt):
print(f"[ERROR] Failed to update breakpoint at address {ea:#x}.")
# Clean up failed breakpoint update
idaapi.del_bpt(ea)
return False
# 6. Initialize count for the current run
execution_counts[ea] = 0
print(f"[SUCCESS] Execution counting tracepoint set at address {ea:#x}.")
return True
def reset_all():
"""
Complete reset: clears counts, history, removes breakpoints, and unhooks the debugger hook.
"""
global execution_counts, run_history, g_target_ea, g_debugger_hook
print("[ACTION] Performing a full reset...")
# Remove breakpoint
if g_target_ea != idaapi.BADADDR:
print(f" - Removing breakpoint at address {g_target_ea:#x}...")
if idaapi.del_bpt(g_target_ea):
print(f" - Breakpoint removed.")
else:
print(f"[WARNING] Failed to remove breakpoint at address {g_target_ea:#x} (it might have been manually removed).")
else:
print(" - No breakpoint to remove (target address not set).")
# Clear counts and history
execution_counts.clear()
run_history.clear()
print(f" - Execution counts and history cleared.")
# Unhook and clear hook instance
if g_debugger_hook:
print(" - Unhooking debugger hook...")
try:
g_debugger_hook.unhook()
print(" - Debugger hook unhooked.")
except Exception as e:
print(f"[ERROR] Error unhooking debugger hook: {e}")
finally:
g_debugger_hook = None # Clear reference
else:
print(" - No hook to unhook (not active).")
# Reset target address
g_target_ea = idaapi.BADADDR
print("[DONE] All tracking states have been reset.")
# --- Main Execution Logic ---
def run_execution_counter_script():
"""
Main function: gets an address, sets up the breakpoint and hook (if not already set).
"""
global g_target_ea, g_debugger_hook, execution_counts, run_history
# 0. Check if an address is already being tracked
if g_target_ea != idaapi.BADADDR:
print(f"[INFO] Currently tracking address {g_target_ea:#x}.")
print(f" - Current run count: {execution_counts.get(g_target_ea, 0)}")
print(f" - History: {run_history.get(g_target_ea, [])}")
choice = ida_kernwin.ask_yn(1, f"Currently tracking {g_target_ea:#x}.\nDo you want to fully reset and choose a new address?\n(Select 'No' to continue tracking the current address)")
if choice == 1: # Yes
reset_all() # Full reset
else:
print("[Action Canceled] Continuing to track the current address. To stop, call reset_all().")
return
# --- If execution reaches here, there's no active tracking or user chose to reset ---
# 1. Pop up window to request address
prompt_msg = "Please enter the instruction address to count executions for (e.g., 0x401000):"
default_addr = idc.here() # Default to current cursor address
input_ea = ida_kernwin.ask_addr(default_addr, prompt_msg)
# 2. Validate user input
if input_ea is None or input_ea == idaapi.BADADDR:
print("[INFO] User canceled or did not enter a valid address. Script terminated.")
return
if not idaapi.is_mapped(input_ea):
print(f"[ERROR] The entered address {input_ea:#x} is invalid or not mapped. Script terminated.")
return
# Record the new target address
g_target_ea = input_ea
print(f"[INFO] New target address set to: {g_target_ea:#x}")
# Clear any existing old counts and history for this address (just in case)
execution_counts.pop(g_target_ea, None)
run_history.pop(g_target_ea, None)
# Initialize count and history containers for the new address
execution_counts[g_target_ea] = 0
run_history[g_target_ea] = []
# 3. Set counting breakpoint
if not set_counting_bpt(g_target_ea):
print("[ERROR] Failed to set breakpoint. Script terminated.")
g_target_ea = idaapi.BADADDR # Reset target address
return
# 4. Create and register debugger hook (only on first setup)
if g_debugger_hook is None:
try:
print("[ACTION] Registering debugger hook to listen for process exit...")
g_debugger_hook = ExecutionCounterHook()
g_debugger_hook.hook()
print("[SUCCESS] Debugger hook registered successfully.")
except Exception as e:
print(f"[ERROR] Failed to register debugger hook: {e}")
# Attempt to clean up breakpoint
idaapi.del_bpt(g_target_ea)
g_target_ea = idaapi.BADADDR
execution_counts.clear()
run_history.clear()
g_debugger_hook = None
return
else:
print("[INFO] Debugger hook is already active.")
print("-" * 40)
print(f"Script setup complete. Tracking address {g_target_ea:#x}.")
print("Please start the debugger (F9) and run the target program.")
print("After the program finishes normally, the execution count for this address will be automatically printed and recorded.")
print("You can run the program multiple times to accumulate history.")
print("Use the reset_all() function to completely stop and clear all data.")
print("-" * 40)
# --- Script Entry Point ---
if __name__ == "__main__":
# Note: reset_all() is not called here anymore to preserve state when reloading the script.
# If a completely clean start is needed, call reset_all() manually from the IDA Python command line.
# reset_all() # Uncomment to force reset every time the script runs
# Run main logic
run_execution_counter_script()
# --- Helper Functions (can be called from IDA Python command line) ---
# reset_all() # For manual full reset
Set a breakpoint using the script above:
1
2
3
4
5
6
7
Sample inputs:
input1: "aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa"
input2: "faaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa"
input3: "flaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa"
Execution counts:
[147, 208, 326]
Obviously, single-byte verification with flag structure: flag{ ... }.
The script below (Python + Frida) implements side-channel brute-force:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
# PyScript.py
# -*- coding: UTF-8 -*-
import subprocess
import frida
import sys
import os # Added for checking hook file existence
# --- Configuration Constants ---
TARGET_EXE = "ezVm.exe"
HOOK_SCRIPT_FILE = "hook.js"
# Flag length including "flag{" and "}"
# Original script uses range(len(flag), 44) and ljust(43,"A")+"}"
# This implies total length is 44, content length is 44-len("flag{}") = 38
# Padding length is 43 (index 0 to 42)
FLAG_TOTAL_LENGTH = 44
FLAG_CONTENT_PAD_LENGTH = 43 # Length used for ljust padding
FLAG_KNOWN_PREFIX = "flag{O1SC_VM"
PADDING_CHAR = "a"
# Character set for bruteforce, starting with '`' for calibration
PRINTABLE_CHARS = r"`!\"#$%&'()*+,-./:;<=>?@[]^_{|}~0123456789abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ"
# Initial comparison value (last value assigned in original script)
INITIAL_NUMBER = 103833
# --- Global State for Frida Interaction ---
# 'number' stores the score of the best known prefix
# 'new_number' stores the score of the current attempt
number = INITIAL_NUMBER
new_number = 0
# --- Frida Callback Function ---
def on_message(message, data):
"""Callback function to handle messages from the Frida script."""
global new_number
if message['type'] == 'send':
payload = message['payload']
# print(f"[*] Frida Message Payload: {payload}", type(payload)) # Optional: more detailed debug
try:
# Assume payload is the number we need for comparison
new_number = int(payload)
except (ValueError, TypeError) as e:
print(f"[!] Error parsing Frida payload: {payload} - {e}")
# Decide how to handle parse errors, maybe reset new_number?
new_number = -1 # Or some other indicator of failure
elif message['type'] == 'error':
print(f"[!] Frida Error: {message.get('description', 'No description')}")
print(f" Stack: {message.get('stack', 'No stack trace')}")
print(f" Details: File {message.get('fileName', 'N/A')}, Line {message.get('lineNumber', 'N/A')}, Col {message.get('columnNumber', 'N/A')}")
else:
print(f"[*] Frida Message: {message}")
# --- Helper Function ---
def is_right():
"""Compares the current attempt's score with the best known score."""
global new_number, number
if new_number > number:
# print(f"[*] New best score found: {new_number} > {number}") # Optional debug
number = new_number
return True
else:
# print(f"[*] Score {new_number} is not better than {number}") # Optional debug
return False
# --- Main Execution Logic ---
def main():
global number, new_number # Allow modification of globals
# Check if hook script exists
if not os.path.exists(HOOK_SCRIPT_FILE):
print(f"[!] Error: Hook script '{HOOK_SCRIPT_FILE}' not found.")
sys.exit(1)
# Load Frida JScode
try:
with open(HOOK_SCRIPT_FILE, "r", encoding="utf-8") as f:
jscode = f.read()
except Exception as e:
print(f"[!] Error reading hook script '{HOOK_SCRIPT_FILE}': {e}")
sys.exit(1)
flag = FLAG_KNOWN_PREFIX
print(f"[*] Starting bruteforce for flag (expected length: {FLAG_TOTAL_LENGTH})")
print(f"[*] Initial known prefix: '{flag}'")
# Bruteforce loop for characters from current length up to target content length
# Example: if flag="flag{", len=5. Loop from 5 up to 43 (exclusive)
# because the 44th char (index 43) is always "}"
for index in range(len(flag), FLAG_TOTAL_LENGTH - 1):
found_char_for_index = False
print(f"\n[*] Trying index: {index}")
# Iterate through possible characters for the current position
for char_to_try in PRINTABLE_CHARS:
# Reset new_number for each attempt
new_number = 0
# Construct the test flag: current_flag + guess + padding + "}"
tmp_flag = (flag + char_to_try).ljust(FLAG_CONTENT_PAD_LENGTH, PADDING_CHAR) + "}"
print(f" Trying char: '{char_to_try}' -> Input: \"{tmp_flag}\"")
process = None
session = None
try:
# Start the target process for each guess
process = subprocess.Popen(
[TARGET_EXE], # Pass exe name as a list for robustness
stdin=subprocess.PIPE,
stdout=subprocess.PIPE,
stderr=subprocess.PIPE,
universal_newlines=True # Use text mode for stdin/stdout/stderr
)
# Attach Frida to the newly started process
# Add a small delay or retry logic if attachment fails immediately
try:
session = frida.attach(process.pid)
except frida.ProcessNotFoundError:
print(f"[!] Error: Could not find process {process.pid} immediately. Maybe it exited too quickly?")
# Clean up the zombie process if Popen succeeded but attach failed
if process and process.poll() is None:
process.terminate()
process.wait() # Ensure termination
continue # Skip to the next character
except Exception as e:
print(f"[!] Error attaching Frida to PID {process.pid}: {e}")
if process and process.poll() is None:
process.terminate()
process.wait()
continue # Skip to the next character
# Create and load the Frida script
script = session.create_script(jscode)
script.on('message', on_message)
script.load()
# Send the crafted input flag to the process
# process.communicate handles writing, closing stdin, and waiting
output, error = process.communicate(input=tmp_flag)
# Script execution continues after communicate() finishes (process exits)
# --- Decision Logic ---
# Calibrate 'number' using the '`' character score on the first attempt for this index
if char_to_try == PRINTABLE_CHARS[0]: # Check if it's the calibration char ('`')
print(f" Calibration with '{char_to_try}': Setting base score to {new_number}")
number = new_number # Set the baseline score for this index
# Check if the current character yielded a better score
elif is_right():
flag += char_to_try
print(f"\n[+] Correct character found: '{char_to_try}'")
print(f"[+] Current Flag: {flag}\n")
found_char_for_index = True
# Detach Frida session cleanly (optional but good practice)
session.detach()
break # Move to the next index
# Detach Frida session if it was successfully attached
session.detach()
except frida.InvalidOperationError as e:
print(f"[!] Frida Error (e.g., process terminated before detach): {e}")
except Exception as e:
print(f"[!] An unexpected error occurred: {e}")
# Ensure process is terminated if it's still running
if process and process.poll() is None:
try:
process.terminate()
process.wait(timeout=1) # Wait briefly
except subprocess.TimeoutExpired:
process.kill() # Force kill if terminate fails
except Exception as term_err:
print(f"[!] Error during process cleanup: {term_err}")
# Ensure session is detached if it exists
if session:
try:
session.detach()
except Exception as detach_err:
print(f"[!] Error during session detach cleanup: {detach_err}")
finally:
# Ensure the process is terminated, even if errors occurred
# Note: communicate() already waits for termination.
# terminate() here is mostly a safeguard.
if process and process.poll() is None: # Check if still running
# print(f" Terminating process {process.pid}...") # Optional debug
process.terminate()
try:
process.wait(timeout=1) # Wait briefly for termination
except subprocess.TimeoutExpired:
print(f" Process {process.pid} did not terminate gracefully, killing.")
process.kill() # Force kill if necessary
# else:
# print(f" Process {process.pid} already terminated.") # Optional debug
# If no character was found for the current index after trying all possibilities
if not found_char_for_index:
print(f"\n[!] Could not find correct character for index {index}.")
print(f"[!] Exiting. Current flag guess: {flag}")
sys.exit(1) # Exit if stuck
# Final flag includes the closing brace (already added in tmp_flag construction)
# We just need to ensure the loop completed successfully.
final_flag = flag + "}" # Add the final brace if loop completed
if len(final_flag) == FLAG_TOTAL_LENGTH:
print("\n" + "="*20)
print(f"[+] Bruteforce Complete!")
print(f"[+] Final Flag: {final_flag}")
print("="*20)
else:
print("\n[!] Bruteforce finished, but flag length is incorrect.")
print(f"[!] Result: {final_flag} (Length: {len(final_flag)}, Expected: {FLAG_TOTAL_LENGTH})")
if __name__ == "__main__":
main()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
// hook.js
var number = 0
function main()
{
var base = Module.findBaseAddress("ezVM.exe")
//console.log("inject success!!!")
//console.log("base:",base)
if(base){
Interceptor.attach(base.add(0x1044), {
onEnter: function(args) {
//console.log("number",number)
number+=1
}
});
Interceptor.attach(base.add(0x0113f), {
onEnter: function(args) {
// console.log("end!",number)
send(number)
}
});
}
}
setImmediate(main);

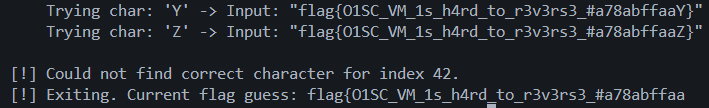

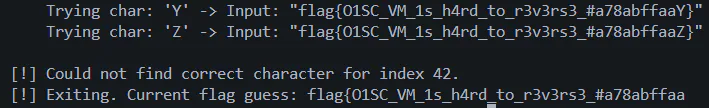

The last verification does not leak side-channel info, so brute-force the last character to retrieve the flag.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
import subprocess
base_flag = 'flag{O1SC_VM_1s_h4rd_to_r3v3rs3_#a78abffaa }'
executable = "ezVm.exe"
for i in range(32, 128):
char = chr(i)
test_flag = base_flag.replace(" ", char)
process = subprocess.Popen(
[executable],
stdin=subprocess.PIPE,
stdout=subprocess.PIPE,
stderr=subprocess.PIPE,
text=True
)
# Send inputs to receive outputs / errors; communicate will wait the process to complete
output, error = process.communicate(input=test_flag)
if "Invalid" not in output:
print(f"Found potential flag: {test_flag}")
print(f"Output: {output.strip()}")
if error:
print(f"Stderr: {error.strip()}")
break
flag{O1SC_VM_1s_h4rd_to_r3v3rs3_#a78abffaa#}
One Instruction Set Computer: One instruction, multi operations.
[miniL 2025] rbf
Reversing Brainfuck, two method:
- Symbolic execution
- Dump runtime memory and analyze
[ACTF 2025] unstoppable
This challenge implements a busy beaver problem, aiming to find all stoppable Turing machines.
In theoretical computer science, the busy beaver game aims to find a terminating program of a given size that (depending on definition) either produces the most output possible, or runs for the longest number of steps. Since an endlessly looping program producing infinite output or running for infinite time is easily conceived, such programs are excluded from the game. Rather than traditional programming languages, the programs used in the game are n-state Turing machines, one of the first mathematical models of computation.
The program takes 2703 integers as input. We must find all (2703) stoppable VMs.
Thus, it’s a crackme challenge that requires the user to input the correct sequence of numbers to retrieve the flag.
Key takeaways of main():
1
2
3
4
5
6
7
8
9
10
11
12
13
14
while ( check_if_deref_not_equal(&VM.VM_number, &VM.max_VM) )
{
VM.VM_number_0 = take_offset_32_ret_ptr(&VM.VM_number);
write_data_func(&VM, &bunch_of_bytes + 30 * *VM.VM_number_0);
execution_count = VM_exec_loop(&VM);// The correct VM will be stoppable
x = seed;
base = offset_8x_plus_deref(base_addr, *VM.VM_number_0);// base_addr + offset * 8
y = do_some_math(&unk_3DBC9, *base, execution_count);// _, base, exp
seed = multi_mod(&unk_3DBC8, x, y);
delete_VM(&VM);
apply_Rb_tree_increment(&VM.VM_number);
}
check("Congratulations!", 0x18uLL, seed, output);
Reverse engineering VM_exec_loop():
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
uint64_t __fastcall VM_exec_loop(VMContext *VM_1)
{
do
{
++VM->instr_counter;
if ( *add_two_args(&VM->tape_base_ptr, VM->read_write_head) != 0 )
{
ptr_1 = cal_op_offset(VM, LOBYTE(VM->IP)) + 3;// ptr_1 = code_base + 6*IP +3
ptr_final = ptr_1;
}
else
{
ptr_2 = cal_op_offset(VM, LOBYTE(VM->IP));// ptr_2 = code_base + 6*IP
ptr_final = ptr_2;
}
LO_WORD = *ptr_final;
HI_BYTE = *(ptr_final + 2);
LO_CHAR_1 = LO_WORD;
*add_two_args(&VM->tape_base_ptr, VM->read_write_head) = LO_CHAR_1;// Write to tape
if ( HIBYTE(LO_WORD) ) // Determine which direction to move
{
offset = VM->read_write_head;
if ( offset == get_data_buffer_size(&VM->tape_base_ptr) - 1 )
{
num = 0;
expand_data(&VM->tape_base_ptr, &num);
}
++VM->read_write_head;
}
else
{
if ( VM->read_write_head == 0 )
{
p_tape_base_ptr = &VM->tape_base_ptr;
data_base_ptr = direct_ret(&VM->tape_base_ptr);
direct_assign(&data_base_ptr_1, &data_base_ptr);
num_1 = 0;
alloc_and_insert_bytecode(p_tape_base_ptr, data_base_ptr_1, &num_1);
++VM->read_write_head;
}
--VM->read_write_head;
}
LOBYTE(VM->IP) = HI_BYTE;
}
while ( LOBYTE(VM->IP) != 0x19 ); // halt condition
return VM->instr_counter;
}
Brief analysis of the logic:
After reversing the VM_exec_loop(), we can dump the bytecode (bunch_of_bytes) and write a script to brute-force all 5005 numbers of Turing machines, identifying stoppable machines (where execution_count <= 47176870)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
// brute-force_stoppable_VMs.cpp
#include <cstdio>
#include <vector>
#include <cstdint>
#include <omp.h>
#include "op.hpp" // VMs dumped -> uint8_t program[5005][30]
using namespace std;
int main()
{
int ALLN = 5005;
setvbuf(stdout, nullptr, _IONBF, 0);
#pragma omp parallel for
for (int i = 0; i < ALLN; i++)
{
vector<uint8_t> tape(1024, 0);
uint64_t read_write_header = 511;
uint64_t now_count = 0;
uint8_t IP = 0;
while (now_count < 47176870)
{
now_count++;
uint8_t* operation = program[i] + 3 * ((IP << 1) | (tape[read_write_header] != 0)); // states: IP
tape[read_write_header] = operation[0];
if (operation[1])
{
read_write_header++;
if (read_write_header == tape.size())
{
tape.insert(tape.end(), tape.size(), 0);
}
}
else
{
if (read_write_header == 0)
{
read_write_header += tape.size();
tape.insert(tape.begin(), tape.size(), 0);
}
read_write_header--;
}
IP = operation[2];
if (IP == 0x19)
{
printf("%d ", i);
break;
}
}
}
return 0;
}
This post is licensed under CC BY 4.0 by the author.
